XTR-7174 Hub Cap (Replaces 4024)
Out of stock
PRODUCT DESCRIPTION
The Xtractor® XTR-7174 is a heavy-duty hub cap designed specifically for steer axle applications to deliver superior protection, extended oil life, and faster service. The integrated multistage oil filter actively traps metallic & particulate debris in lubrication oil, protecting critical wheel-end components and helping detect potential failures before they happen.
Tech Specs:
- Axle Position: Steer Axle
- Number of Bolt Holes: 6
- Bolt Circle Diameter: 4.500 in
- Flange Outer Diameter: 5.250 in

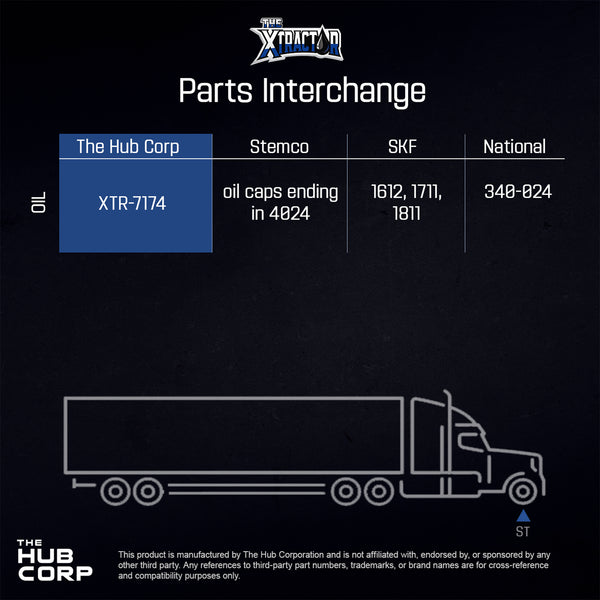

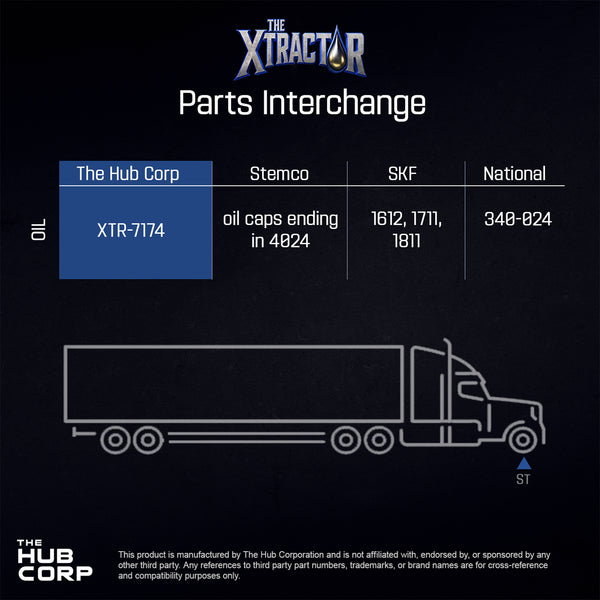

- Cross Reference: Stemco 4024, SKF 1612, 1711, 1811, & National 340-024

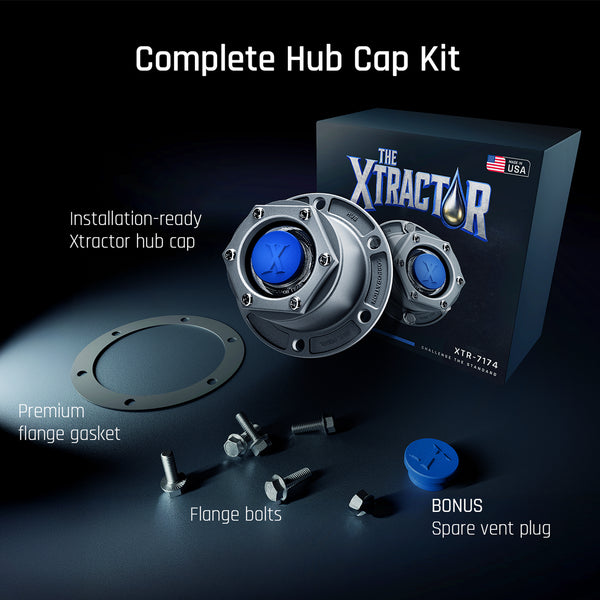

In The Box:
- One (1) XTR-7174 Hub Cap Assembly
- One (1) Premium Flange Gasket
- Six (6) 5/16" x 3/4" Flange Bolts
Other hub caps seal problems in. The Xtractor filters them out.
Multistage Oil Filtration
The Xtractor is the only heavy-duty hub cap that actively filters hub oil to remove hard particulates. Cleaner oil = less friction, less heat, and better fuel economy.
HexThread Cartridge
Better understand the health of your wheel-end system via the HexThread front-access cartridge. No need to uninstall the entire hub cap for service or inspection.
Easily remove and inspect the filter for trapped wear metals or sludgy debris.
WHAT OUR CUSTOMERS ARE SAYING
When I was filling up, I saw that my oil was really black so I drained and refilled it with new oil before I even finished filling my tank. That's not something you can do with any other hubcap.
Anthony P.
Owner Operator based in Michigan
I've never seen another hubcap built this well. It is easy to install and the filter is a really smart way to remove contamination that wears on bearings.
Vlad K.
Mobile Diesel Mechanic based in North Carolina
I was skeptical at first, but once I opened the cartridge and saw how full of gunk the filter was, I was sold. Won't ever use a different hubcap on my equipment.
Mark H.
Owner Operator based in South Carolina
INSTAllATION GUIDE
Bolt HubCap Body to Hub Flange
Lube Cartridge Threads and O-Ring
Hand-Tighten Cartridge
Torque to 90 Ft-LBS
Add lubricant to full line
Install rubber plug
Faqs
Why does hub oil need to be filtered?
Over time bearings and seals wear, which increases friction and elevates operating temperature inside the wheel-end system. These conditions accelerate parts wear and decrease fuel efficiency. Filtering hub oil breaks this deterioration cycle and improves system performance.
Isn't a magnetic plug enough?
Magnets capture ferrous particles, but much of the contaminant load in a hub is not magnetic. The multistage filter in The Xtractor captures both magnetic and non-magnetic particles.
How often should I check my oil?
Installed on an existing hub, you should perform your first visual check of your hub oil and filter after 25K-30K miles. Thereafter every 60K-75K miles is sufficient. Your own operating conditions will ultimately dictate inspection frequency.
How do I know if the filter needs changing?
When a visual inspection of the filter reveals wear metals stuck to the magnets and/or a sludgy slurry accumulating inside the mesh, oil should be drained and the filter should be cleaned or replaced.
How do I change the filter?
If the filter is clogged simply replace the entire HexThread Cartridge. It comes fully assembled with a brand new sight glass, plug, and filter.
