Tapa de cubo XTR-7174 (sustituye a 4024)
Los gastos de envío se calculan en la pantalla de pago.
Agotado
DESCRIPCIÓN DEL PRODUCTO

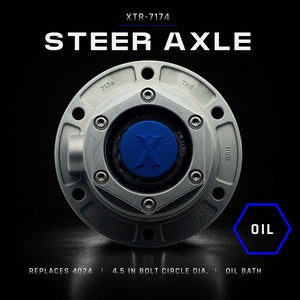

El Xtractor® XTR-7174 es una tapa de cubo de alta resistencia diseñada específicamente para aplicaciones de eje direccional para brindar protección superior, vida útil prolongada del aceite y un servicio más rápido. El filtro de aceite multietapa integrado atrapa activamente los residuos metálicos y particulados en el aceite lubricante, protegiendo los componentes críticos del extremo de la rueda y ayudando a detectar posibles fallas antes de que ocurran.
Fabricado con aluminio de primera calidad, el XTR-7174 resiste el agrietamiento, la corrosión y los daños provocados por las sales de la carretera y los impactos. Un cristal de observación ultraclaro con indicador de nivel de aceite simplifica las inspecciones, mientras que el cartucho HexThread®, con patente pendiente, permite un mantenimiento rápido y limpio sin quitar la tapa del cubo.
Como ocurre con todas las tapas de cubo Xtractor, se incluyen seis tornillos de brida y una junta de brida de primera calidad en la caja.
Especificaciones técnicas:
- Posición del eje: Eje direccional
- Número de orificios para pernos: 6
- Diámetro del círculo de pernos: 4.500 pulgadas
- Diámetro exterior de la brida: 5.250 pulgadas
- Referencia cruzada: Stemco 4024, SKF 1612, 1711, 1811 y National 340-024
Utiliza estos bloques de imagen para contar tu historia, promocionar tus productos o crear una bonita galería.
Bloque de texto
Utilice estos bloques de texto para promocionar ventas de temporada, eventos de la tienda o para contar la historia de su marca.
Bloque de texto
Utilice estos bloques de texto para promocionar ventas de temporada, eventos de la tienda o para contar la historia de su marca.
Usa estos bloques de imagen para contar tu historia, promocionar tus productos o crear una hermosa galería.
A BETTER BUILT HUB CAP
Military Grade Materials
Tested to MIL-STD-810F, The Xtractor's military grade construction delivers unmatched strength, heat resistance, heat dissipation, and sealing performance.
UV-Stabilized Sight Glass
The UV-stabilized, high-heat polycarbonate sight glass delivers exceptional clarity, impact resistance, and thermal stability at any temperature.
Pressure Venting Plug
A high-performance, rubber plug functions as both a vent and fill port. It's designed to withstand the rigors of heavy-duty operation without cracking or leaking.
INSTAllATION GUIDE
Bolt HubCap Body to Hub Flange
Lube Cartridge Threads and O-Ring
Hand-Tighten Cartridge
Torque to 90 Ft-LBS
Add lubricant to full line
Install rubber plug
WHAT USERS ARE SAYING
When I was filling up, I saw that my oil was really black so I drained and refilled it with new oil before I even finished filling my tank. That's not something you can do with any other hub cap.
Anthony P.
Owner Operator based in Michigan
I've never seen another hub cap built this well. It is easy to install and the filter is a really smart way to remove contamination that wears on bearings.
Vlad K.
Mobile Diesel Mechanic based in North Carolina
I was skeptical at first, but once I opened the cartridge and saw how full of gunk the filter was, I was sold. Won't ever use a different hub cap on my equipment.
Mark H.
Owner Operator based in South Carolina
Faqs
Why does hub oil need to be filtered?
Over time bearings and seals wear, which increases friction and elevates operating temperature inside the wheel-end system. These conditions accelerate parts wear and decrease fuel efficiency. Filtering hub oil breaks this deterioration cycle and improves system performance.
Isn't a magnetic plug enough?
Magnets capture ferrous particles, but much of the contaminant load in a hub is not magnetic. The multistage filter in The Xtractor captures both magnetic and non-magnetic particles.
How often should I check my oil?
Installed on an existing hub, you should perform your first visual check of your hub oil and filter after 25K-30K miles. Thereafter every 60K-75K miles is sufficient. Your own operating conditions will ultimately dictate inspection frequency.
How do I know if the filter needs changing?
When a visual inspection of the filter reveals wear metals stuck to the magnets and/or a sludgy slurry accumulating inside the mesh, oil should be drained and the filter should be cleaned or replaced.
How do I change the filter?
If the filter is clogged simply replace the entire HexThread Cartridge. It comes fully assembled with a brand new sight glass, plug, and filter.
