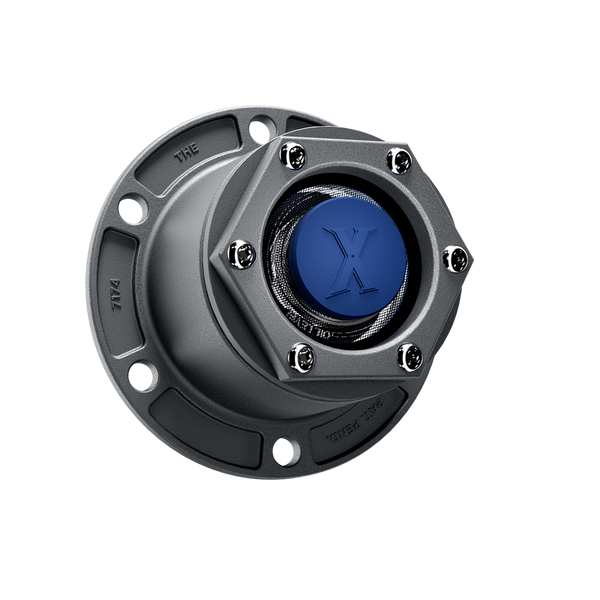

XTR-7174 Hub Cap (Replaces 4024)

The Xtractor™ XTR-7174 is a heavy-duty hub cap designed specifically for steer axle applications to deliver superior protection, extended oil life, and faster service. The integrated 3-Stage Magnetic Oil Filter actively traps metallic & particulate debris in the lubrication oil, protecting critical wheel-end components and helping fleets detect potential failures before they happen.

Crafted from premium aluminum, the XTR-7174 resists cracking, corrosion, and damage from road salts and impact. An ultra-clear sight glass with oil level indicator simplifies inspections, while the patent-pending HexThread™ access cap allows quick, clean maintenance—no broken gaskets, no mess.

Tech Specs:

• Axle Position: Steer Axle
• Number of Bolt Holes: 6
• Bolt Circle Diameter: 4.500 in
• Flange Outer Diameter: 5.250 in
• Cross Reference: Stemco 4024, SKF 1612, 1711, 1811, & National 340-024

• HexThread™ Front Access Cartridge for simplified hub oil service
• Built-in multi-stage magnetic filter to remove ferrous & fine particulates
• Ultra-clear sight glass with oil fill level indicator
• Vented rubber plug to regulate pressure, keeping oil in and contaminants out
• Premium aluminum alloy for ultimate durability and corrosion resistance
