Hub Oil Analyzed: It's Worse Than You Think

Hub Oil Analyzed: It's Worse Than You Think

A recent study by an independent, third-party laboratory highlights just how far reality can diverge from accepted cleanliness standards—and what that means for wheel-end reliability.

Two Hubs, Two Stories

We collected hub oil samples from two trailers that regularly run routes across the Southeast U.S. Each had accumulated roughly 25,000 miles since its last hub oil service.

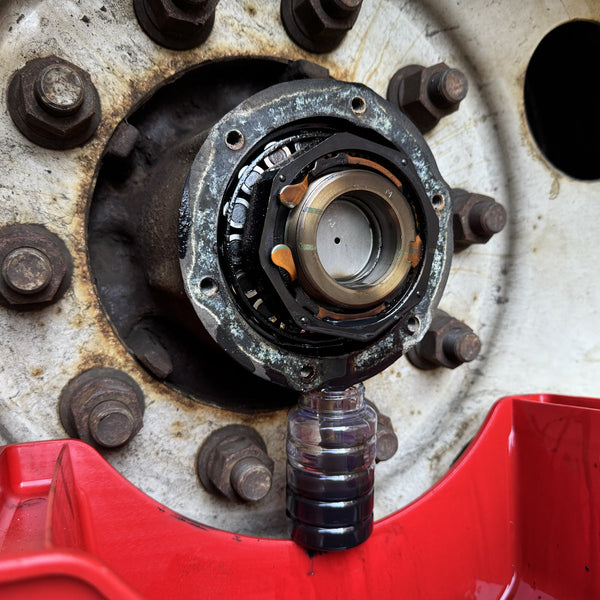

To test, we removed the standard hub caps, drained the oil into sampling bottles, and sent them to the lab for analysis. Afterward, we installed new Xtractor hub caps and put the trailers back on the road.

At first glance, both samples looked the same—thick, black, and dirty. But the lab results told two very different stories:

  • Sample 1: Elemental iron at 2,136 ppm and magnetic iron at 1,757 ppm — evidence of advanced bearing wear and internal component breakdown. For context, healthy hub oil usually contains fewer than 25 ppm of iron.
  • Sample 2: Elemental iron at 792 ppm and magnetic iron at 937 ppm, plus silicon at 346 ppm — pointing not only to heavy wear but also significant external contamination, likely from a failed hub seal. Silicon levels in clean hub oil should typically be below 20 ppm.

Why Dirty Oil Matters

It’s one thing to know oil is contaminated. It’s another to understand what that means inside the wheel-end.

  • Internal Wear (Sample 1): The extreme iron levels indicate bearing components were actively disintegrating. Ferrous debris was circulating unchecked, accelerating the wear cycle.
  • External Intrusion (Sample 2): High silicon levels revealed road dust and debris infiltrated through a compromised seal. Mixed with iron particles, the oil had become an abrasive slurry that destroyed lubricity and accelerated wear.

Once contaminated, hub oil can no longer do its job. Instead of reducing friction, it increases it. Heat builds. Bearings deteriorate. Rolling resistance rises, forcing the drivetrain to burn more fuel just to maintain speed.

According to FMCSA data, wheel-end failures are one of the top three causes of truck breakdowns on U.S. highways. A single roadside wheel-end failure can easily run $1,000–$3,000 in parts and labor, not including lost revenue from a delayed load.

Breaking the Cycle with Active Filtration

This is where The Xtractor Hub Cap changes the equation. Unlike standard hub caps, which merely contain oil, The Xtractor features integrated multistage magnetic filtration that traps both metallic and environmental debris before it can circulate through the hub. Independent testing shows it can reduce particulate contamination by up to 90%.

Why is this different?

  • Standard hub caps have no filtration at all.
  • The Xtractor is the first hub cap with integrated filtration designed to capture internal wear particles and external contaminants.

In practical terms, that means:

  • Bearings and seals last longer.
  • Oil maintains its protective qualities between service cycles.
  • Fleets avoid premature wheel-end rebuilds and reduce the risk of catastrophic failures.

In the case of these two trailers, the high wear particles revealed by analysis point to the need for deep service—hub, spindle, and bearing replacement. With The Xtractor in place earlier, that timeline could have been pushed out significantly.

The Bottom Line

Oil analysis doesn’t just reveal the present—it shows what could have been prevented.

With The Xtractor’s ability to cut particulate contamination by 90%+, these hubs would likely still be running within acceptable cleanliness levels, avoiding premature component failures and expensive downtime.

The choice is clear:
Continue relying on standard hub caps that only contain oil—or upgrade to The Xtractor, a hub cap that actively protects.
