Cleaner Oil, Longer Bearing Life
In the field, most bearings never reach the service life they were designed for. Large-scale bearing damage analysis shows that in more than half of premature failures, the cause isn’t fatigue—it’s avoidable, non-fatigue factors. And in roughly 90% of those cases, the trail leads to two main culprits: contamination and lubrication breakdown.
Small Particles, Big Damage
It doesn’t take much to start the wear cycle. Fine particles from brake dust, road grit, or internal wear products—sometimes smaller than the eye can see—get into the oil and disrupt the lubricant film. Once that happens, several failure modes begin:
Abrasive wear
Even particles a few microns in size can lap the precision surfaces of rollers and raceways. In tapered roller bearings, this often shows up first on the roller ends and cone rib.
Bruising and pitting
Hard particles indent bearing surfaces, creating raised edges that act as stress risers. These stress points accelerate fatigue, leading to spalling.
Grooving
Larger particles can become embedded in softer cage materials, cutting grooves into the rollers and disrupting the rolling geometry.
Water contamination
As little as 1% moisture in oil can significantly reduce bearing life by causing corrosion etching. These etched areas often develop into full spalls under load.
Contamination can come from external sources like worn seals or pressure washing, or from inside the hub—metal fines from gears, splines, clutches, and brakes circulating in the oil. Once inside, the particles complete a destructive loop, passing through the contact surfaces with every wheel rotation.
Lubrication Breakdown
Lubricant problems aren’t just about having enough oil—they’re about maintaining the right viscosity, cleanliness, and additive package for the operating conditions. Analysis of failed bearings frequently shows:
Heat discoloration
Metal-to-metal contact raises temperatures, which can double the oxidation rate of oil for every 10°C (18°F) increase, rapidly aging the lubricant.
Scoring and peeling
A thin or absent lubricant film allows direct surface contact, leading to material removal and roughness.
Localized roller-end heat damage
Concentrated heat at the large end of tapered rollers from inadequate film strength.
Total lockup
In severe cases, geometry changes, cage destruction, and seizure occur when the system overheats and deforms.
These modes are often progressive—the early stages might go unnoticed until vibration, temperature spikes, or oil discoloration appear, at which point significant damage is already underway.
What Bearing Wear Really Costs Your Operation
When contamination and poor lubrication cause bearing wear, here’s what you’re really dealing with in your truck or trailer:
Increased rolling resistance
Worn bearings don’t roll smoothly. That means your engine has to work harder to turn the wheels, burning more fuel every mile.
Heat buildup
Friction from worn surfaces generates heat, which accelerates oil breakdown and can damage seals. Once a seal fails, the oil drains out and the damage accelerates exponentially.
Component collateral damage
Bearing wear doesn’t stay in the bearings. It transfers vibration and misalignment to the hub, spindle, and axle, chewing up parts that cost far more to replace.
Catastrophic failure risk
Severe wear can lead to bearing seizure. At highway speed, that’s not just an expensive tow — it’s a destroyed hub assembly, possible wheel-off incident, and weeks of unplanned downtime.
Downtime costs
A roadside failure can easily run $1,000–$3,000 in parts and labor before you factor in lost revenue from a load that didn’t make it on time.
And here’s the kicker: most of this starts with particles you’ll never see without a lab test. Let them keep circulating in your hub oil, and you’re essentially feeding your bearings sandpaper every mile. It’s a slow grind toward a major repair bill.
What Can You Do About It?
The standard approach relies on seals and periodic hub oil changes to manage contamination. The problem is, seals wear and service intervals leave plenty of time for abrasive particles to circulate and cause harm. Every pass through the bearing contact zone does a little more damage.

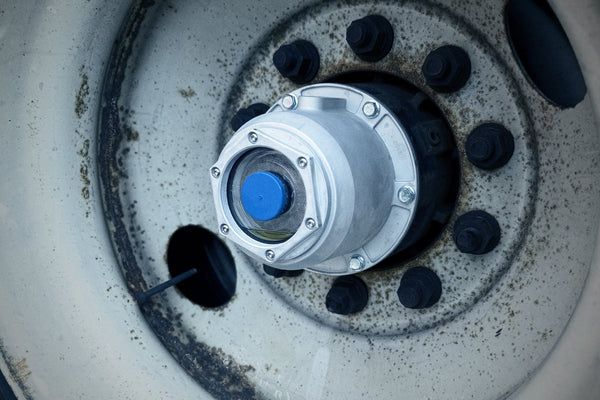

An integrated, continuous filtration system interrupts that cycle. The Xtractor hub cap employs a multi-stage filtration approach—magnetic capture for ferrous particles combined with fine mesh for non-ferrous debris—removing contaminants as the wheel turns. This reduces particle count in the oil, helping maintain a full, protective lubricant film between service intervals.
Quantifiable Benefits of Cleaner Oil
Reducing solid particle contamination has been shown to extend bearing life by multiples—not just percentages—by preventing early fatigue initiation.
Keeping water out of the oil avoids the rapid drop in life expectancy associated with as little as 1% moisture content.
Cleaner oil minimizes abrasive wear, preserving the original geometry of rolling elements and raceways, which keeps load distribution optimal and stress concentrations low.
The Bottom Line
Failure analysis from across the heavy-duty industry points to the same root cause over and over: contamination and lubrication breakdown are the real killers of wheel-end bearings.
Keeping those particles out of circulation isn’t just good maintenance — it’s one of the easiest ways to protect your uptime and your bottom line. When you consider that cleaner oil can multiply bearing life, it’s hard to justify not addressing it.
Learn more about how The Xtractor's integrated, serviceable, multi-stage oil filtration system directly addresses the root causes—not just by containment, but by active oil filtration.
